Pick Zone Module

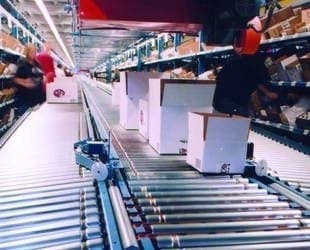

Pick Zone Module is a cost-effective zone-picking solution, consisting of line-shaft-driven conveyors that transfer totes or cartons from a mainline conveyor into predetermined picking zones adjacent and parallel to the mainline.

Pick-or-pass zone picking for split-case order fulfillment.

  • Transfers “on the fly” to achieve high throughput
  • Entire module driven by one motor (or two motors, when the reversing TGW Right-Angle Sorter® is used), reducing costs and power consumption
  • Can be used with any accumulation conveyor
  • All conveyors shipped fully assembled, reducing installation costs
  • Precision bearings in all driven rollers and timing belts provide quiet operation
  • Few mechanical devices, reducing maintenance


Maximum Conveyor Speed      200 FPM
Maximum Product Weight      75 lbs.
Product Dimensions      Minimum 8″ x 10″, maximum 32″ x 3″

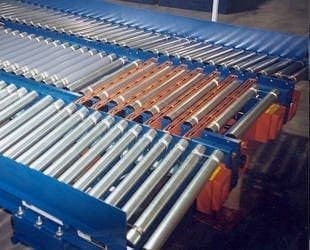

Throughput      Up to 40 cartons per minute with ERS Right-Angle Sorter
